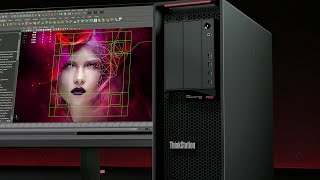

Lenovo ThinkStation P620 Tower Workstation

MSRP 1937 USDNEX score 74%

Product Gallery

Photo 0of Lenovo ThinkStation P620 Tower WorkstationPhoto 1of Lenovo ThinkStation P620 Tower WorkstationPhoto 2of Lenovo ThinkStation P620 Tower Workstation

Product Overview

Lenovo ThinkStation P620 is a powerful ATX workstation powered by AMD Ryzen Threadripper PRO processors up to the 64-core 3995WX and up to two NVIDIA Quadro RTX 8000 or four RTX 4000 professional GPUs with NVLink.
I/O-wise, the ThinkStation P620 Tower offers a rich set of options similar to that of P520, though its positioning means that more advanced ports are supported in place of legacy ones.
Inside, the ThinkStation P620 Tower can be configured with up to 1TB, 8-channel ECC memory as well as up to 11 M.2 PCIe SSDs and five 3.5" HDDs.
Besides the P620, Lenovo also markets a full range of workstations in this generation, from the ultra-compact P340 Tiny to more powerful full towers with dual CPUs.

<

>

X

Ratings

What we found**

Pros
  • High-quality workstation chassis
  • Excellent CPU performance
  • Highly configurable
Cons
  • Only one memory slot per channel

What external reviewers found***

NEX score: 74% (not directly comparable across industries)
Pros
  • Excellent build quality
  • Very good performance
  • Excellent CPU performance
  • Excellent cooling
  • Sleek design
  • Supports up to 32GB of storage
Cons
  • Pricey for parts
  • Only 64 GB of VRAM
  • No PCIe 4.0 ports
  • Only one M.2 SSD
  • Very loud under load
  • Nothing in particular
Read More

Price Comparison (incl. referral links)*

Specifications

Capacity

Interior Volume
33 L

Connectivity

CPU Socket
AMD SP3
Expansion Slot
2x Optical drives / 1x optical drive + 2x 3.5" SATA / 2x M.2 SSD removable drive enclosures / other I/O ports + 2x M.2 onboard + 9x via M.2 to PCIe adapter + 5x 3.5" (3 optional, 1 via Flex bay)
PCI Express
4x PCIe 4.0 x16 + 2x PCIe 4.0 x8
Ports
[Front] 4x USB 3.2 Gen2 + 2x USB 2.0 + 2x PS/2 + 1x RJ45 (10Gbps) + 1x Microphone + 1x Line-in + 1x Line-out + 2x optional serial | [Rear] 2x USB-C 3.2 Gen2 + 2x USB 3.2 Gen2 + 1x Audio combo + 1x optional SD card reader
Wireless Connectivity
WiFi 5 + Bluetooth 5.1 / none

Construction

Colors
Black
Form Factor
ATX desktop computer

Dimensions

Size | Depth
460 mm / 18.1"
Size | Height
446 mm / 17.6"
Size | Width
165 mm / 6.5"
Weight
24 kg / 52.91 lbs

Function

Audio
High Definition (HD) Audio, Realtek ALC662 codec
Chipset
AMD WRX80
Graphics
NVIDIA Quadro P620 2GB GDDR5 to P2200 5GB GDDR5 / RTX 4000 8GB GDDR6 to RTX 8000 48GB GDDR6 / GV100 32GB HBM2 / RTX A6000 48GB GDDR6
Operating System
Windows 10 Pro, Ubuntu, or none
Operating Temperature
10⁰ C to 35⁰ C
Optical Disc
Optional 9mm optical drive (DVD-ROM, DVD±RW, or Blu-ray)
Processor
AMD Ryzen Threadripper PRO 3945WX, 3955WX, 3975WX, or 3995WX
Security
Discrete TPM 2.0, TCG certified

Performance

Memory | Capacity
8x DIMMs, up to 1TB, 8 channels
Memory | Type
DDR4 3200MHz ECC
Power Supply
1000W 80 PLUS Platinum
Storage
Up to 11x M.2 PCIe SSD + 5x SATA HDD

Production

Debut
2020

Related Products

Thumbnail of product Lenovo ThinkStation P720 Tower Workstation

Lenovo ThinkStation P720 Tower Workstation

Lenovo ThinkStation P720 is a powerful ATX workstation powered by two Intel Xeon Scalable family CPUs with 24 cores each as well as up to two NVIDIA Quadro RTX 8000 or four RTX 4000 professional GPUs with NVLink. I/O-wise, the ThinkStation P720 Tower o...
Thumbnail of product Lenovo ThinkStation P520c Tower Workstation

Lenovo ThinkStation P520c Tower Workstation

Lenovo ThinkStation P520c Tower is an ATX workstation powered by Intel Xeon W-2100 or W-2200 series processors with up to one NVIDIA Quadro RTX 5000 or two Quadro P4000 professional GPUs. I/O-wise, the ThinkStation P520c Tower offers some of the most f...
Thumbnail of product Lenovo ThinkStation P520 Workstation

Lenovo ThinkStation P520 Workstation

Lenovo ThinkStation P520 is a powerful ATX workstation powered by Intel Xeon W-2100 or W-2200 series processors with up to one NVIDIA Quadro RTX 8000 or two Quadro RTX 6000 professional GPUs. I/O-wise, the ThinkStation P520 Tower offers some of the ric...
NEX score 82%
Thumbnail of product Lenovo ThinkStation P920 Tower Workstation

Lenovo ThinkStation P920 Tower Workstation

Lenovo ThinkStation P920 is a flagship E-ATX tower workstation powered by two 205W Intel Xeon Scalable family CPUs with up to 28 cores each as well as up to two NVIDIA Quadro RTX 8000 or four RTX 4000 professional GPUs with NVLink. I/O-wise, the ThinkS...
Thumbnail of product Lenovo ThinkStation P350 Tower Workstation

Lenovo ThinkStation P350 Tower Workstation

Lenovo ThinkStation P350 Tower is a mini-tower workstation powered by 11th-gen Intel Core Rocket Lake processors up to Core i9-11900K or Xeon W-1390P as well as up to NVIDIA RTX 5000 graphics. The ThinkStation P350 Tower shares the same dimensions of i...
Thumbnail of product Lenovo ThinkStation P340 Tiny Workstation

Lenovo ThinkStation P340 Tiny Workstation

Lenovo ThinkStation P340 Tiny is a small form factor workstation—the world's smallest—with just 1L interior volume. Powered by 10th-gen Intel Core Comet Lake processors up to Core i9-10900, the P340 Tiny can be configured with up to NVIDIA Quadro P...
Thumbnail of product Lenovo ThinkStation P340 SFF Workstation

Lenovo ThinkStation P340 SFF Workstation

Lenovo ThinkStation P340 SFF is a small form factor workstation powered by 10th-gen Intel Core Comet Lake processors up to Core i9-10900 or Xeon W-1290 as well as up to two NVIDIA Quadro P1000 graphics. Despite its tiny size, the ThinkStation P340 SFF ...
Thumbnail of product Lenovo ThinkStation P340 Tower Workstation

Lenovo ThinkStation P340 Tower Workstation

Lenovo ThinkStation P340 Tower is a mini-tower workstation powered by 10th-gen Intel Core Comet Lake processors up to Core i9-10900K or Xeon W-1290P as well as up to one NVIDIA Quadro RTX 5000 or two Quadro P2200 graphics. I/O-wise, the ThinkStation P3...
Thumbnail of product Lenovo ThinkStation P350 SFF Smart Form Factor Workstation

Lenovo ThinkStation P350 SFF Smart Form Factor Workstation

Lenovo ThinkStation P350 SFF is a small form factor workstation powered by 11th-gen Intel Core Rocket Lake processors up to Core i9-11900 or Xeon W-1390P as well as up to NVIDIA T1000 graphics. The ThinkStation P350 SFF shares the same dimensions of it...
Thumbnail of product Lenovo ThinkStation P350 Tiny Ultra Smart Form Factor Workstation

Lenovo ThinkStation P350 Tiny Ultra Smart Form Factor Workstation

Lenovo ThinkStation P350 Tiny is an ultra small form factor workstation powered by 11th-gen Intel Core Rocket Lake processors up to Core i9 as well as up to NVIDIA P1000 graphics. The ThinkStation P350 Tiny shares the same dimensions of its predecessor...
Thumbnail of product HP Z1 G6 Entry Tower Workstation

HP Z1 G6 Entry Tower Workstation

The Z1 G6 Entry Tower is the most affordable workstation by HP. Powered by up to 10th-gen Intel Core i9 processor and NVIDIA GeForce RTX 2080 graphics, the Z1 G6 offers the exclusive build quality and security features of HP's workstation computers. A ...
Thumbnail of product HP Z2 G5 Workstation

HP Z2 G5 Workstation

HP Z2 G5 Workstation is a powerful workstation that shares its design with the Z1 G6 but with a larger chassis. Powered by up to Intel Xeon W-1290P processor and NVIDIA Quadro RTX 6000 graphics, the Z2 G5 offers the exclusive build quality, security fe...
NEX score 73%

External Reviews

anandtech[1]

Sentiment Score 87%
Reviewers from anandtech have found the following***:
Lenovo has a fully custom motherboard just for this product line, and it uses an ultra-special power supply that has zero power output cables. Lenovo lavishes on the USB 3.2 Gen 2 (10 Gbps) support with eight ports total. Most ThinkStation P620 sales happen through the B2B channels, where a visual effects company orders a few dozen for its artists.
Find the original article here.
Pros
  • Excellent CPU performance
  • Highly configurable
  • Excellent cooling
Cons
  • Nothing in particular

digitaltrends[2]

Sentiment Score 74%
Reviewers from digitaltrends have found the following***:
The Lenovo ThinkStation P620 is a top-tier workstation with a price to match. It offers some of the fastest components on the market and a smart tool-free design. It's too noisy, and the extra power will go to waste in a lot of situations, but there's no denying how much the P620 has to offer.
Find the original article here.
Pros
  • Top-tier components
  • Excellent build quality
  • Easy to upgrade
Cons
  • Pricey for parts

notebookcheck[3]

Sentiment Score 57%
Reviewers from notebookcheck have found the following***:
The AMD Radeon Pro W6800 can show what it's capable of in the rendering tests that we carried out, such as SPECviewperf 2020. The system surprises with a pleasant operating noise in normal use. Only under full load does the Lenovo ThinkStation P620 draw attention to itself due to its accelerating fans. You shouldn't expect top rates in terms of emissions due to the built-in components.
Find the original article here.
Pros
  • Matisse dies included in the case
  • Very good performance
  • High-quality case
Cons
  • Very loud under load
  • Only 64 GB of VRAM
  • Only one M.2 SSD

pcmag[4]

Sentiment Score 76%
Reviewers from pcmag have found the following***:
The Lenovo ThinkStation P620 has few weaknesses next to single-CPU Intel towers such as the company's own P520. It offers similar expansion, ISV certification, and, at a minimum, the same amount of processing power. When equipped with a 32- or 64-core AMD Threadripper Pro, however, it becomes an especially attractive alternative to Intel workstations.
Find the original article here.
Pros
  • Sleek design
  • Competitive price
  • Supports up to 32GB of storage
Cons
  • No PCIe 4.0 ports

User Reviews

References

1. ^ Lenovo ThinkStation P620 Review: A Vehicle for Threadripper Pro. [anandtech]. https://www.anandtech.com/show/16482/lenovo-thinkstation-p620-review-a-vehicle-for-threadripper-pro. 2021-02-16. Retrieved 2021-11-08.
2. ^ Lenovo Thinkstation P620 review: The ultimate Threadripper workstation. [digitaltrends]. https://www.digitaltrends.com/desktop-computer-reviews/lenovo-thinkstation-p620-review/. 2021-08-31. Retrieved 2021-09-02.
3. ^ Review: AMD Ryzen Threadripper Pro 3995WX and Radeon Pro W6800 in the Lenovo ThinkStation P620 high-end workstation. [notebookcheck]. https://www.notebookcheck.net/Review-AMD-Ryzen-Threadripper-Pro-3995WX-and-Radeon-Pro-W6800-in-the-Lenovo-ThinkStation-P620-high-end-workstation.553756.0.html. 2021-08-08. Retrieved 2021-08-08.
4. ^ Lenovo ThinkStation P620 Review. [pcmag]. https://www.pcmag.com/reviews/lenovo-thinkstation-p620. 2020-12-02. Retrieved 2021-05-07.
