MartinLogan Neolith Electrostatic Hybrid Loudspeaker
Product Overview
MartinLogan Neolith features the company's biggest electrostatic transducer. As the flagship, it boasts all the most advanced technologies that MartinLogan has to offer and embodies the company's moto, Truth in Sound.
Besides the enormous electrostatic unit that covers the high- and mid-frequencies, the Neolith blends in a 12-inch front-firing mid-bass woofer and a 15-inch rear-firing bass driver to produce accurate and powerful low frequencies.
The passive design allows for single- or bi-amp connections, and a unique system of audio adjustment jumpers is available. The cabinet is made of non-resonant Phenolic Resin Polymer, and the woofer cabinet is wrapped in soft leather.
Product Gallery
<
>
X
Ratings
Product not yet rated.
Price Comparison (incl. referral links)*
Specifications
Connectivity
Ports
WBT-0705Ag nextgen 5-way bi-wire binding posts w/ filigree signal conductor in silver
Construction
Drivers | Tweeter
XStat CLS electrostatic transducer; Panel Dimensions 48" x 22" (122 x 56cm); Radiating Area 1056 in² (6,832 cm² )
Drivers | Woofer
1x 15" aluminium cone (rear) + 1x 12" rigid carbon fiber sandwich cone
Material
Phenolic Resin Polymer Cabinet
Dimensions
Size | Depth
87 cm
Size | Height
189.9 cm
Size | Width
76.9 cm
Weight
175 kg (385 lbs)
Function
Crossover
60Hz, 250-400Hz
Dispersion
30 deg Horizontal / 48 inch (122 cm) line source Vertical
Performance
Frequency Response
23Hz - 22kHz
Impedance
4 ohms
Power Input
20-1300 W per channel
Sensitivity
90 dB @ 2.83V/1m
Production
Debut
2014
Made In
USA (handmade)
Related Products
Magico M3 Floorstanding Loudspeaker
Magico's M3 is the one of four floorstanding loudspeakers in the company's flagship M-series, with extensive use of aluminum and carbon fibre in the cabinet design as well as large-diameter nano-graphene and diamond-coated drivers. Compared to the newe...
Magico M6 Floorstanding Loudspeaker
Magico's M6 is the one of four floorstanding loudspeakers in the company's flagship M-series, with extensive use of aluminum and carbon fibre in the cabinet design as well as large-diameter nano-graphene and diamond-coated drivers. Compared to the smal...
Magico M2 Floorstanding Loudspeaker
Magico's M2 is the smallest of four floorstanding loudspeakers in the company's flagship M-series, with extensive use of aluminum and carbon fibre in the cabinet design as well as large-diameter nano-graphene and diamond-coated drivers. The Magico M2 h...
Magico M9 Floorstanding Loudspeaker
Magico's M9 is the largest of four floorstanding loudspeakers in the company's flagship M-series, pushing the boundary of musicality, transparency, and fidelity. While others in the M-series are of 3-way design, the M9 is a 4-way, six-driver fl...
Magico A1 Bookshelf Loudspeaker
Magico A1 is a bookshelf loudspeaker in Magico's entry-level A-series. Designed to be obtainable, the Magico A1 is nonetheless a high-end unit that incorporates many of the innovative technologies and delivers much of performance that the brand is know...
NEX score 81%
Magico A5 Floorstanding Loudspeaker
Magico A5 is the larger of two floorstanding loudspeakers in Magico's entry-level A-series. Designed to be obtainable, the Magico A5 is nonetheless a high-end unit that incorporates many of the innovative technologies and delivers much of performance t...
NEX score 93%
Magico A3 Floorstanding Loudspeaker
Magico A3 is the smaller of two floorstanding loudspeakers in Magico's entry-level A-series. Designed to be obtainable, the Magico A3 is nonetheless a high-end unit that incorporates many of the innovative technologies and delivers much of performance ...
Sonus faber Guarneri Tradition Bookshelf Loudspeaker
Guarneri Tradition is a bookshelf loudspeaker in Sonus faber's Homage Tradition series, which is a 21st-century retake of the company's most iconic loudspeaker series in history, the Homage collection. The handcrafted loudspeaker features "...
KEF MUON Floorstanding Loudspeakers
KEF Muon is a loudspeaker that combines form and function. Sculptured from super-formed aluminium, it is both extremely stiff and devoid of sharp edges. Inside the Muon's 6-mm aluminium shell are strengthening braces and a damping coating that makes th...
Wilson Audio SabrinaX Floorstanding Loudspeaker
The SabrinaX is Wilson Audio's smallest floorstanding loudspeaker that inherits many technologies developed for the flagship Chronosonic XVX. Notably, the SabrinaX is enclosed in an X-Material cabinet and features a low-turbulence vent for the midr...
NEX score 92%
Sonus faber Sonetto Center II Center Channel Loudspeaker
Sonetto Center II is a powerful 3-way center channel loudspeaker in the Sonetto collection by Sonus faber. Thanks to its dual 150mm woofers, it is able to reproduce the full frequency range with high levels of clarity and richness and is particularly s...
Sonus faber Electa Amator III Bookshelf Loudspeaker w/ Stand
Sonus faber Electa Amator III is the larger of two bookshelf loudspeakers in the company's Heritage collection. Its design echoes that of Electa Amator from 1987 and Electa Amator II from 1997, though its drivers and crossover feature the latest te...
NEX score 90%

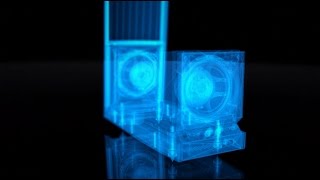

3rd-Party Review Videos
